Flip Action and Mirror

Get your character, or prop, in the perfect position by using Flip Action and Mirror. This article will cover the following:

• Difference between flip action and mirror
• How to mirror props
• How to flip character actions

Difference between flip action and mirror

Flip Action and Mirror will be available when working with characters, but props are limited to the mirror function only.

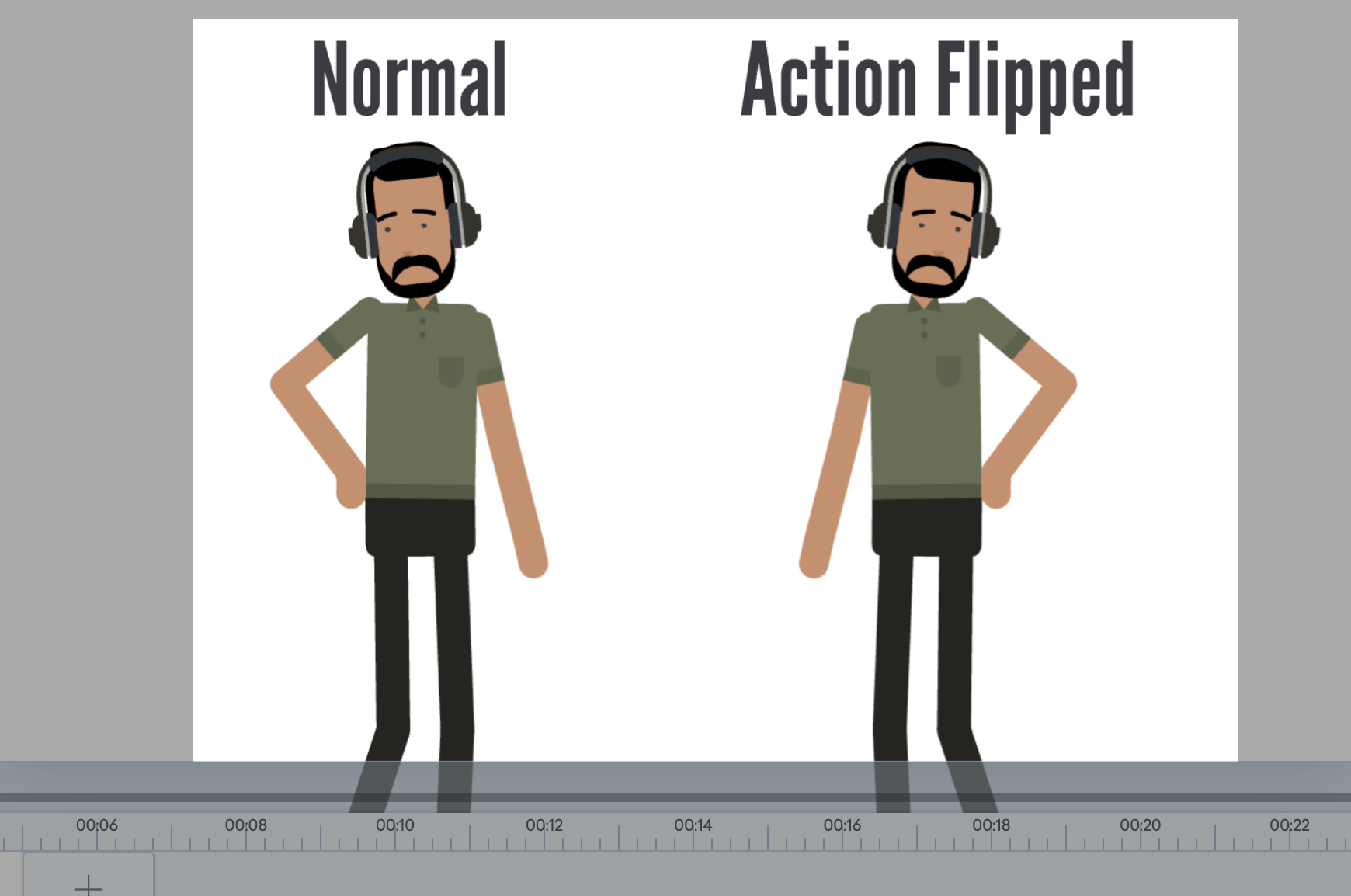

Flip Action is intended to swap the orientation of an action that is applied to a character, but without changing aspects of the character's appearance. In the example below, the character action is flipped. Notice how the arm being used changes sides, but the shirt pocket remains on the same side.

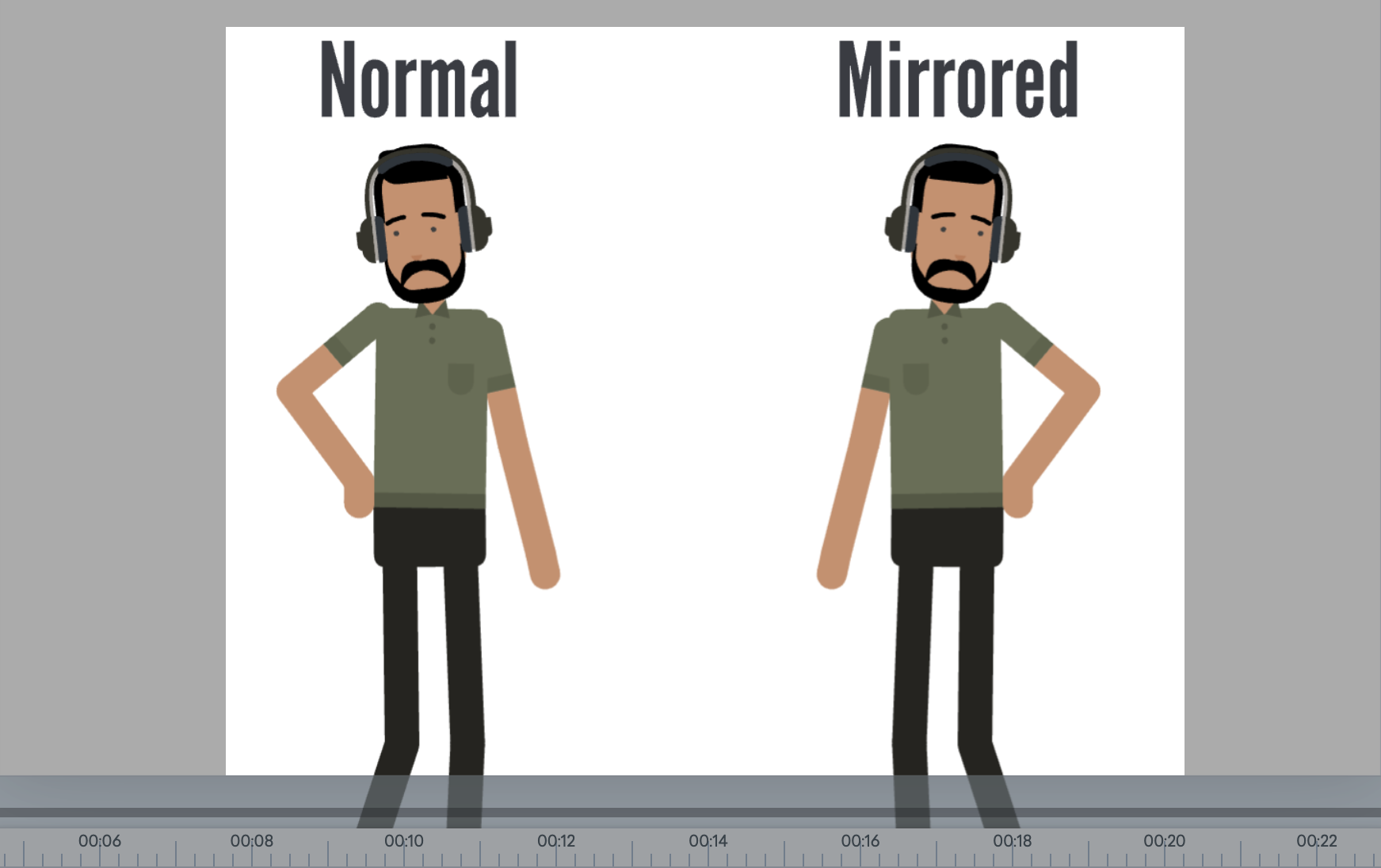

Mirror is meant to invert the image of a selected asset. When a character is mirrored, their action may also flip, but the orientation of their appearance will as well. Notice how the character's arm changes sides, yet the pocket and hair part also change sides. Using Flip Action is suggested with characters, unless mirroring their clothing and hairstyle is the intended result.

(Mirrored prop example)

How to mirror props

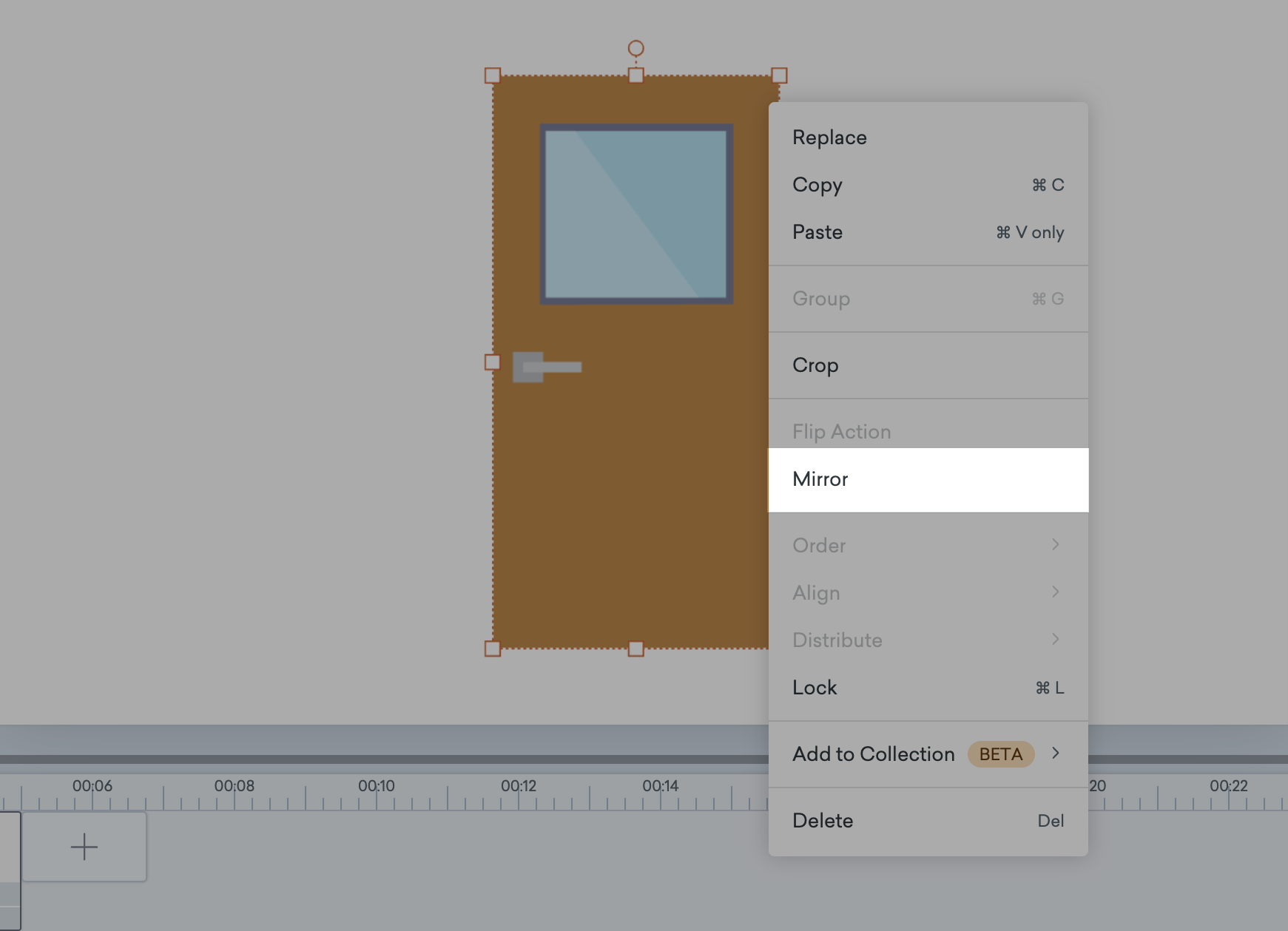

Right-click a prop on the stage and select Mirror from the contextual menu.

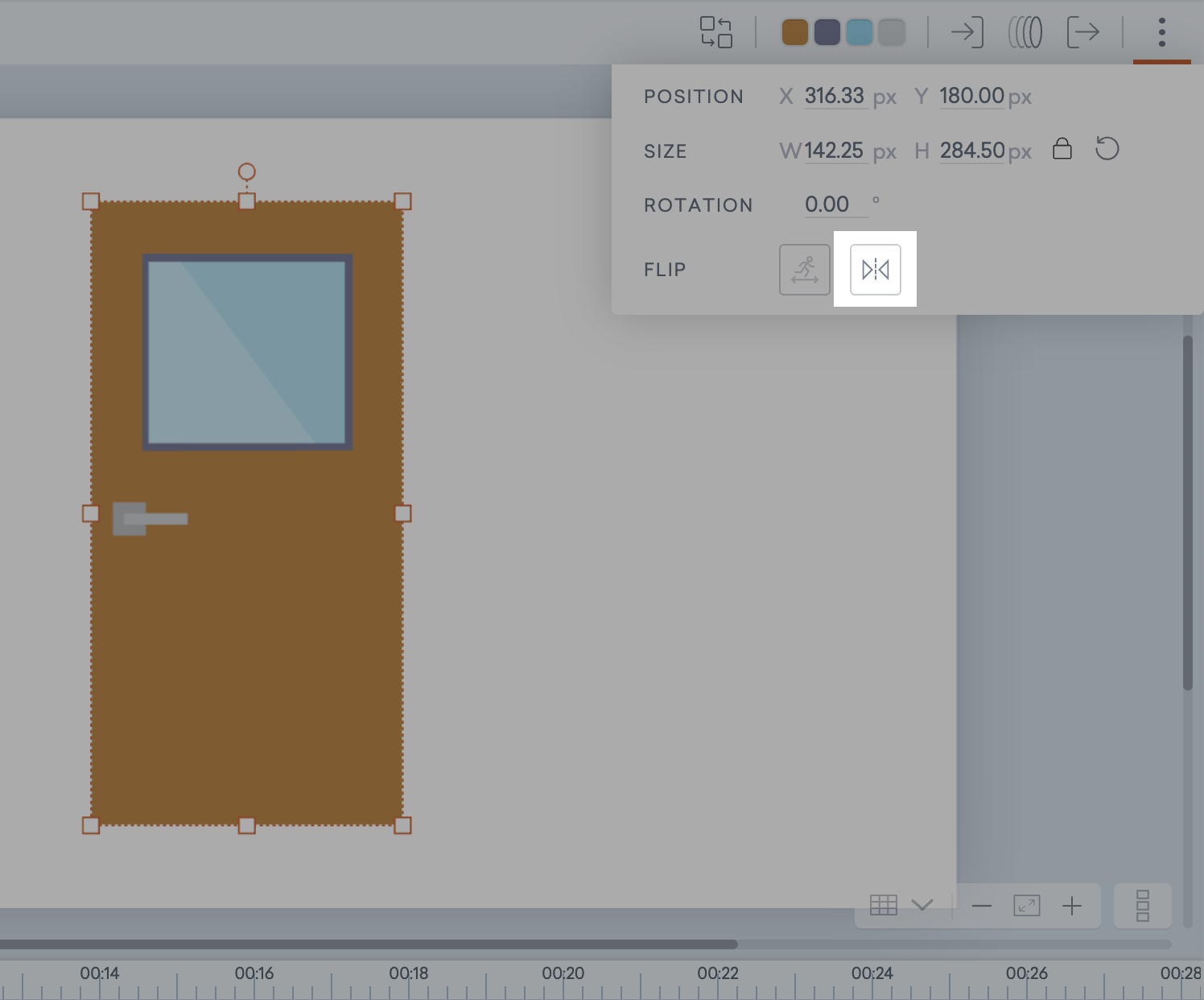

Alternatively, select a prop on the stage, open the More tab, and click on the Mirror icon.

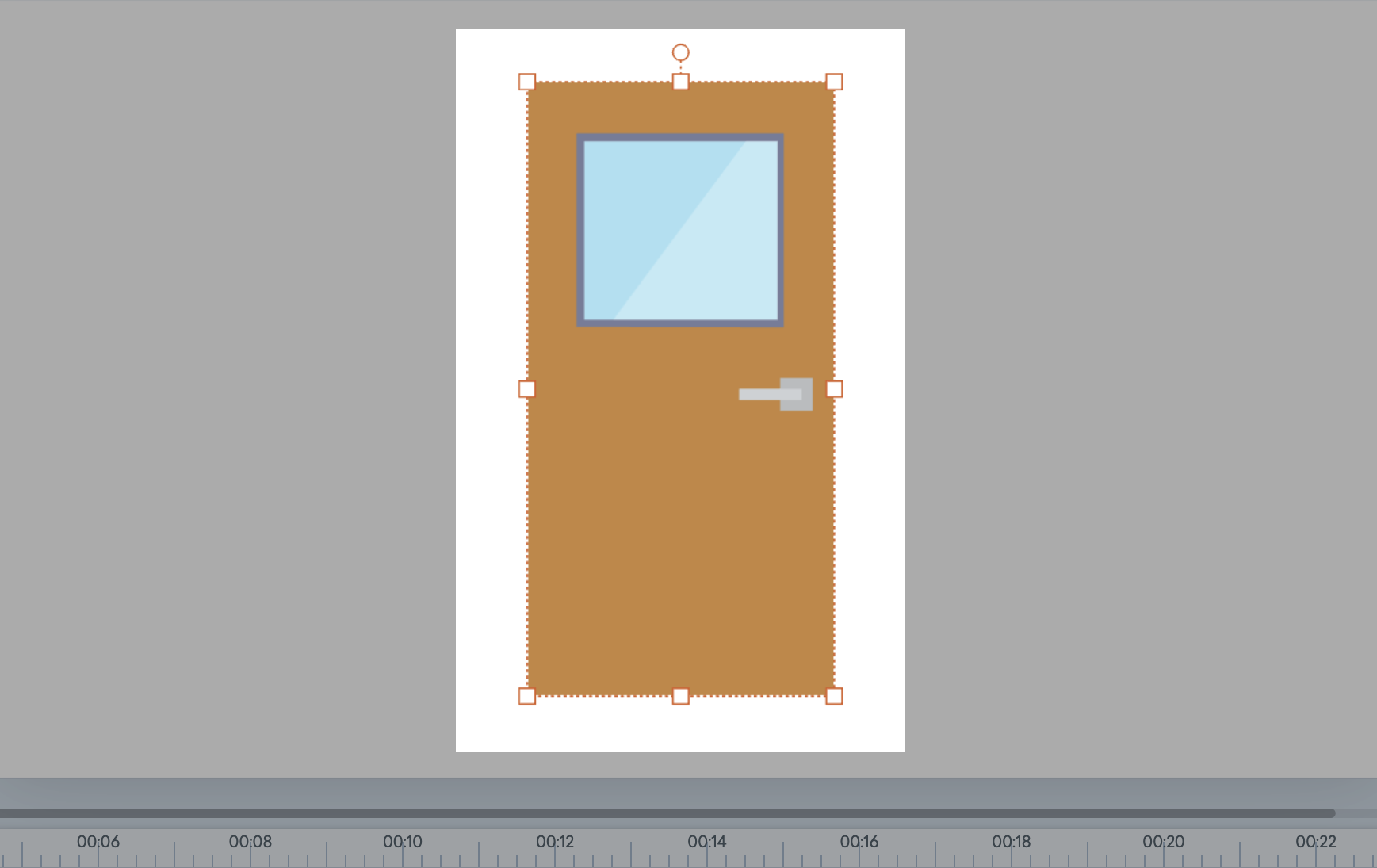

The prop is now mirrored.

How to flip character actions

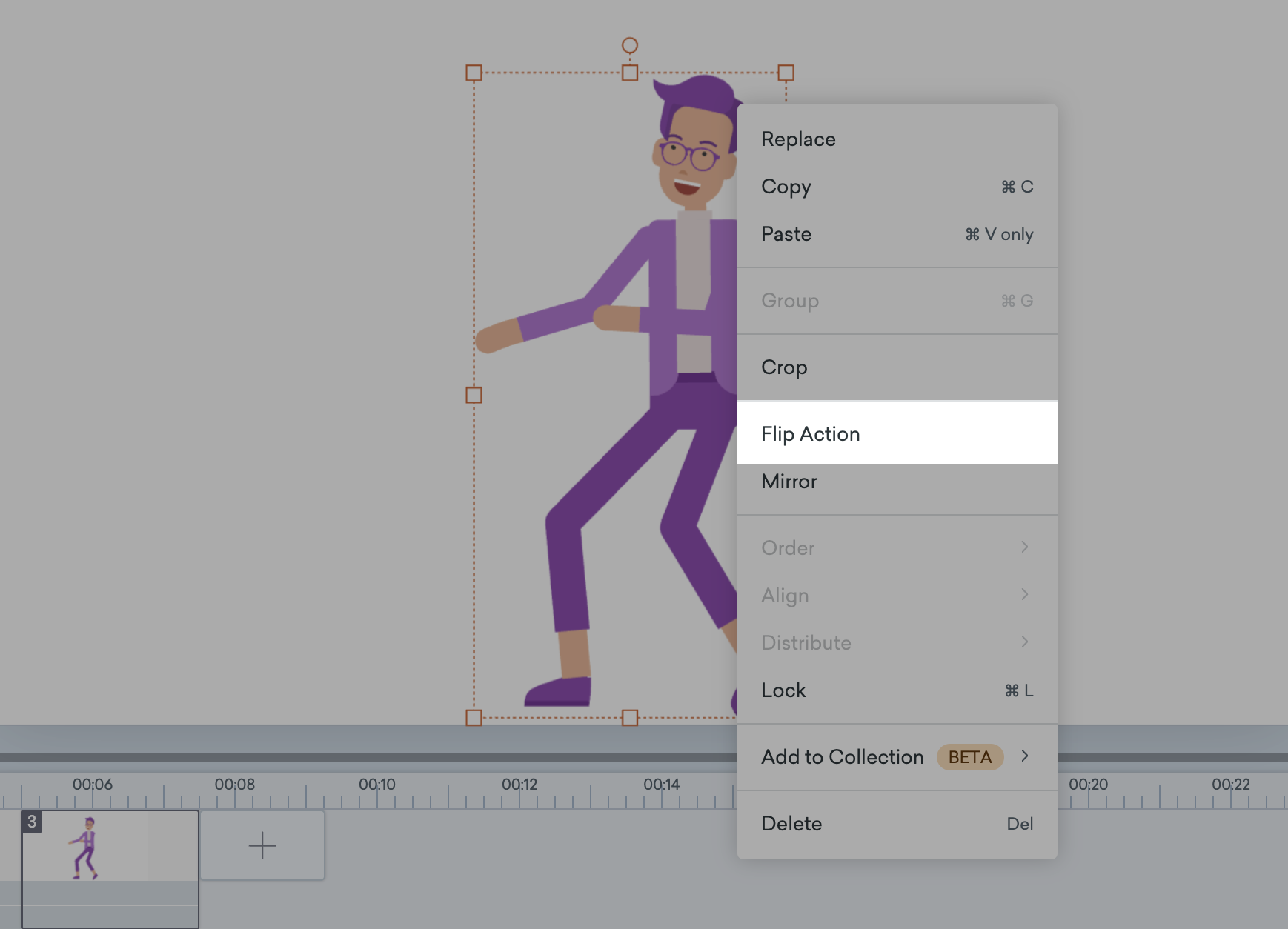

Right-click a character on the stage and select Flip Action from the contextual menu.

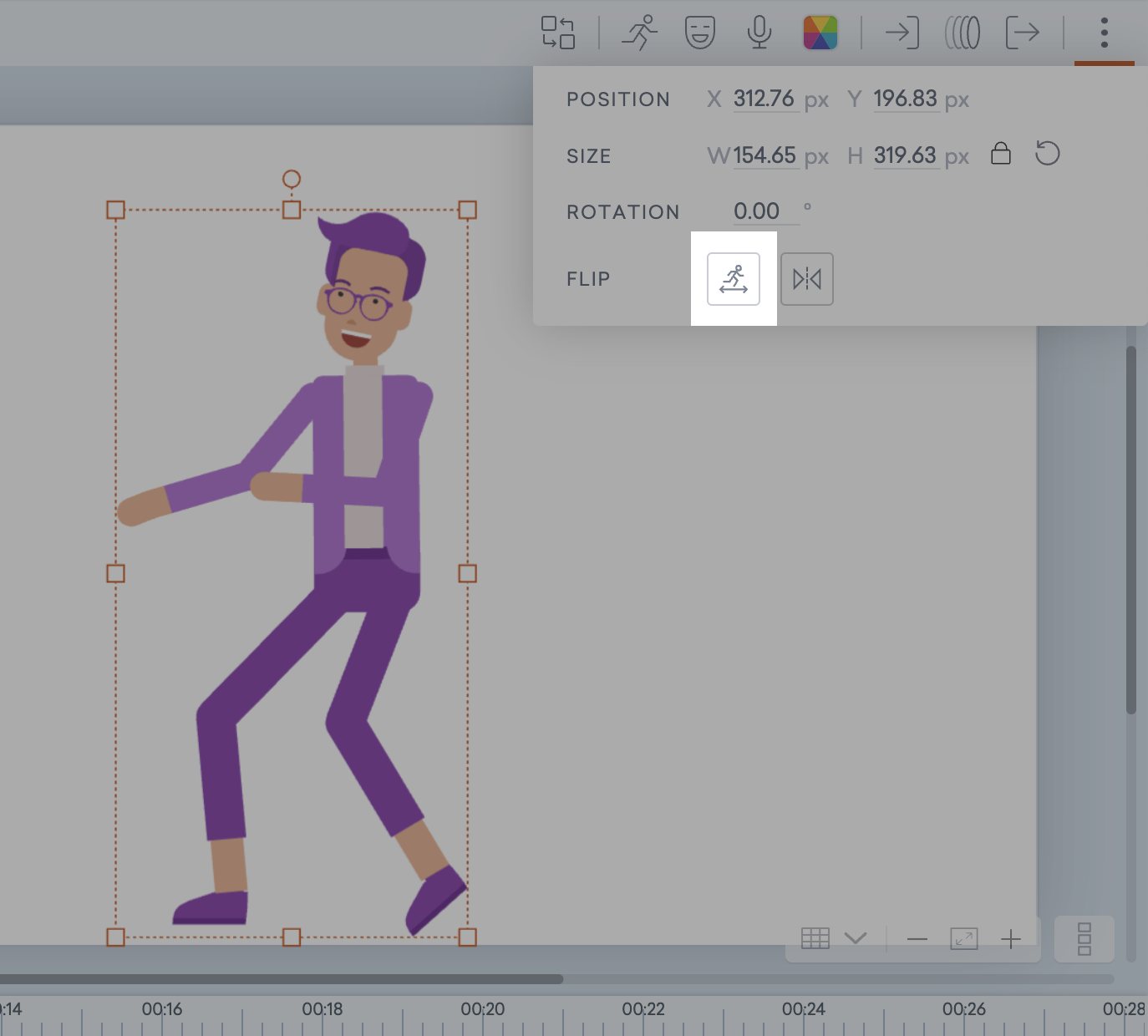

Alternatively, select a character on the stage, open the More tab, and click on the Flip Action icon.

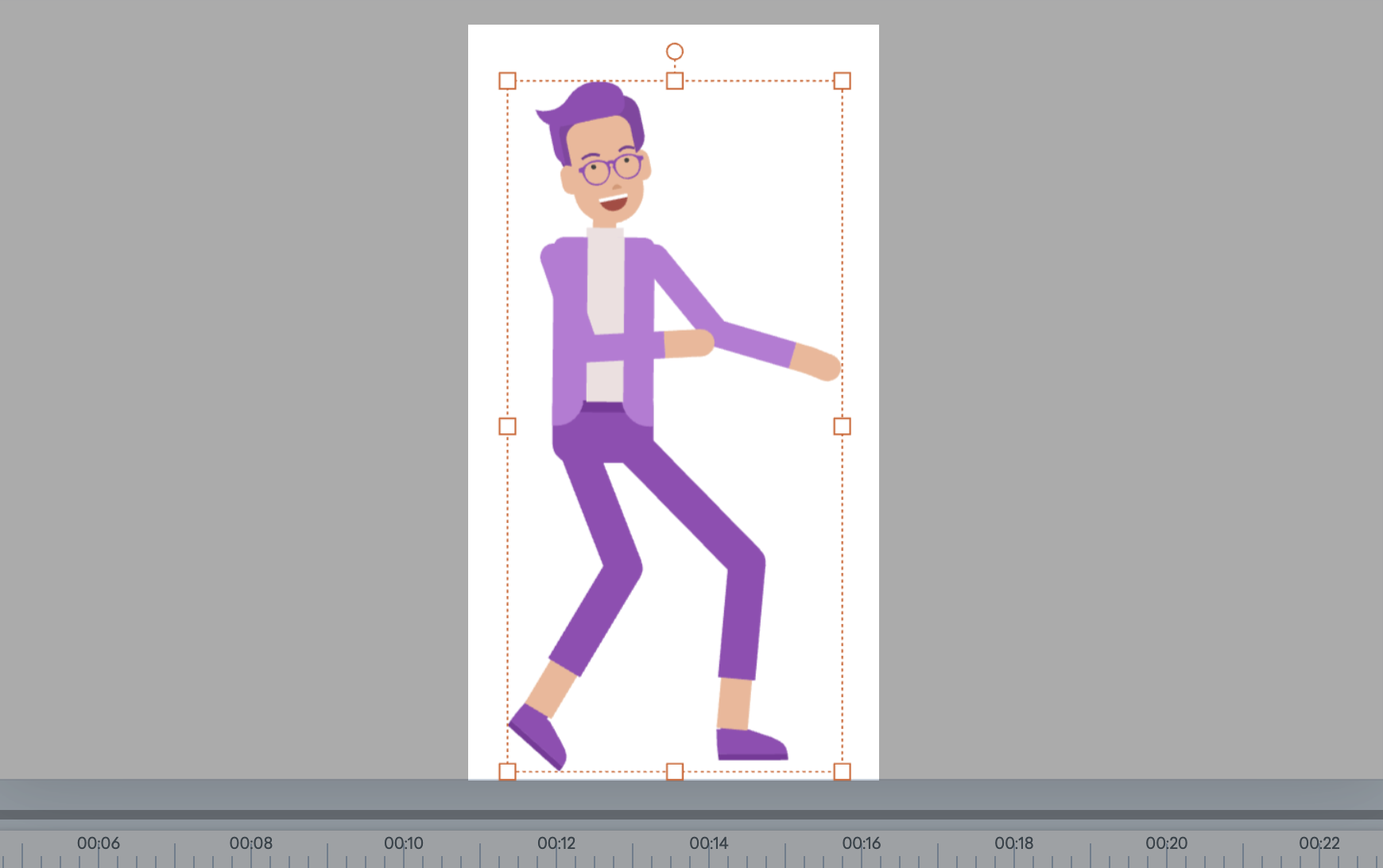

The character's action is now flipped.
